Compact by Design
Professional fiber laser capability in a compact footprint.
PM-F1 / Portable Fiber Laser
PM-F1
Portable Fiber Laser
Professional metal marking, made compact.
A compact handheld and desktop fiber laser designed for metal personalization, studios, shops and mobile professionals.
20W / 30W / 50WHandheld + DesktopStandalone Operation
Why PM-F1
Built to work where you work.
Handheld + Desktop
Bring the laser to the work—or bring the work to the laser.
Standalone Operation
Operate directly from the 7-inch touchscreen without relying on a computer for everyday workflows.
Built for Real Work
Professional fiber performance, all-aluminum construction and configurations designed for commercial use.
Handheld + desktop
One laser. Two ways to work.
01 / Handheld
Bring the laser to the work.
For large parts, fixed equipment and on-site marking.
02 / Desktop
Bring the work to the laser.
For jewelry, tags, gifts and repeatable bench work.
One system. Two ways to work.
Every PM-F1 supports both handheld and desktop operation.
Standalone operation
Standalone by design.
Everything you need to start working, without building your workflow around a computer.

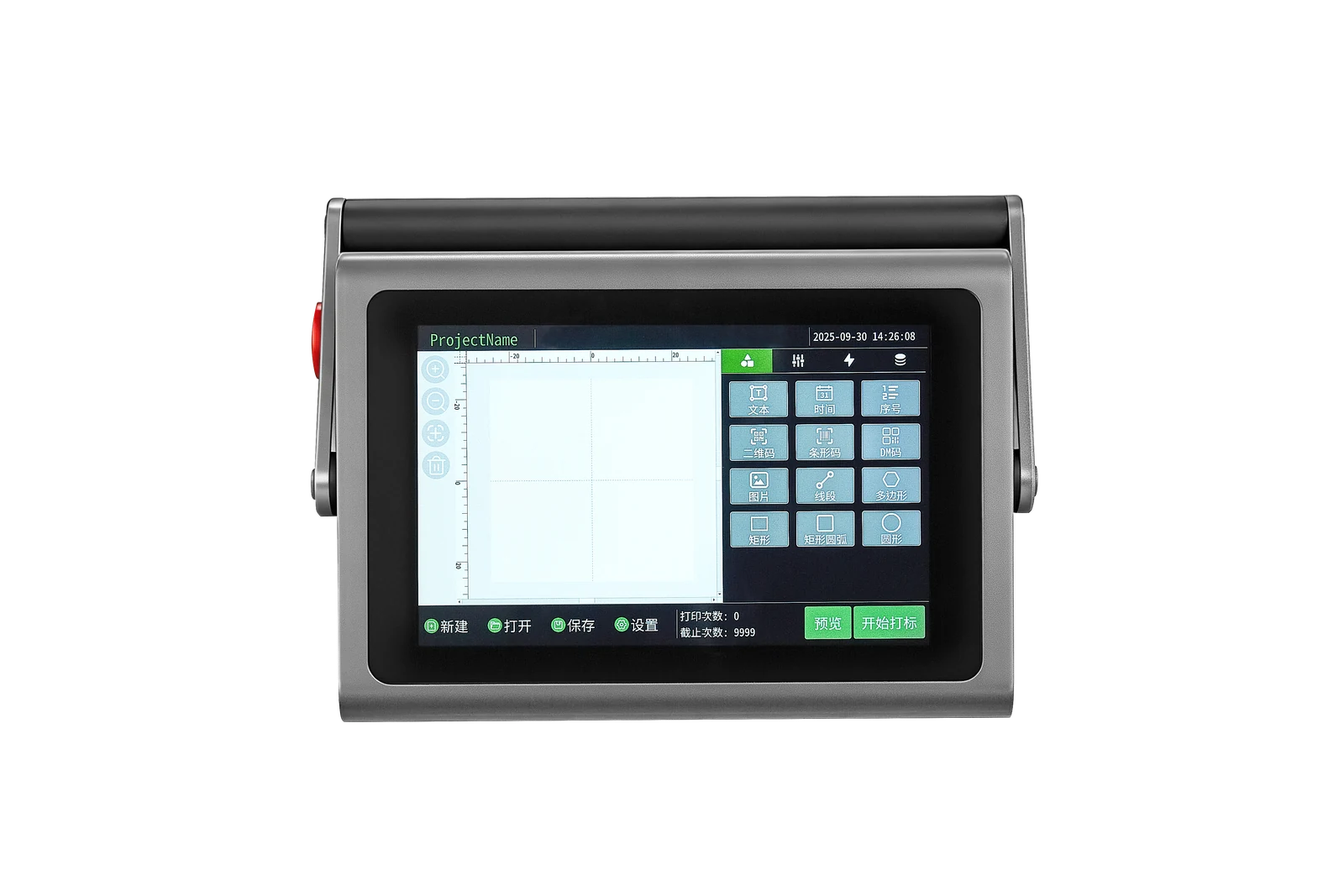

7-inch Touchscreen
Direct control for everyday marking workflows.
Standalone Operation
Run common marking jobs without relying on a computer.
Battery Option
Available battery configuration for greater mobility and field use.
Professional performance
Compact size. Professional performance.
Power options
Choose the power that fits your work.
Precision & Personalization
Best for
Fine marking, jewelry, logos, text and everyday personalization.
Balanced Performance
Best for
Everyday commercial use and broader production workflows.
Higher Productivity
Best for
More demanding commercial workflows and higher processing output.
Final power selection should follow the actual material, finish, desired result and workflow. Confirm the application before final configuration.
Material results
Real materials. Real results.
Composition, coating and finish can change the result. Test the actual part before final selection.
Explore Material Library
Product data
Technical Specifications
Specifications shown are based on the current PM-F1 product brochure. Final configuration is confirmed in the quotation.
- Model
- PM-F1
- Laser Type
- Fiber Laser
- Power
- 20W / 30W / 50W
- Wavelength
- 1064 nm
- Marking Area
- 100 × 100 mm
- Marking Speed
- ≤7000 mm/s
- Line Width
- 0.03 mm
- Repeat Positioning Accuracy
- 0.01 mm
- Positioning
- Red-light positioning / focusing
- Operation
- Handheld + Desktop
- Control
- 7-inch Touchscreen
- File Formats
- BMP / DXF / HPGL / JPEG / PLT
- Barcode
- CODE39 / CODE128 / QR
- Power Consumption
- ≤200W
- Operating Temperature
- 0–40°C
Package & accessories
What’s included.
Standard package and optional accessories are separated clearly. Final configuration is confirmed in the quotation.
Standard Package
- Main Unit
- Handheld Laser Head
- Display Screen
- Power Cord / Adapter
- USB Flash Drive
- Hex Wrench
Optional Accessories
- Quiet Lifting Platform
- Foot Switch
- Battery Configuration
FAQ
Before you choose PM-F1.
Can PM-F1 work without a computer?
Yes. PM-F1 uses a 7-inch touchscreen and a self-developed integrated control system for everyday marking workflows without relying on an external computer.
Can PM-F1 be used handheld and desktop?
Yes. Bring the handheld marking head to large or fixed work, or place it on the desktop stand for smaller, repeatable bench work.
Which power should I choose?
20W, 30W and 50W serve different workflow and productivity needs. The right choice depends on the actual material, finish, desired result and production volume, so we recommend reviewing a real application before selection.
What metals can PM-F1 mark?

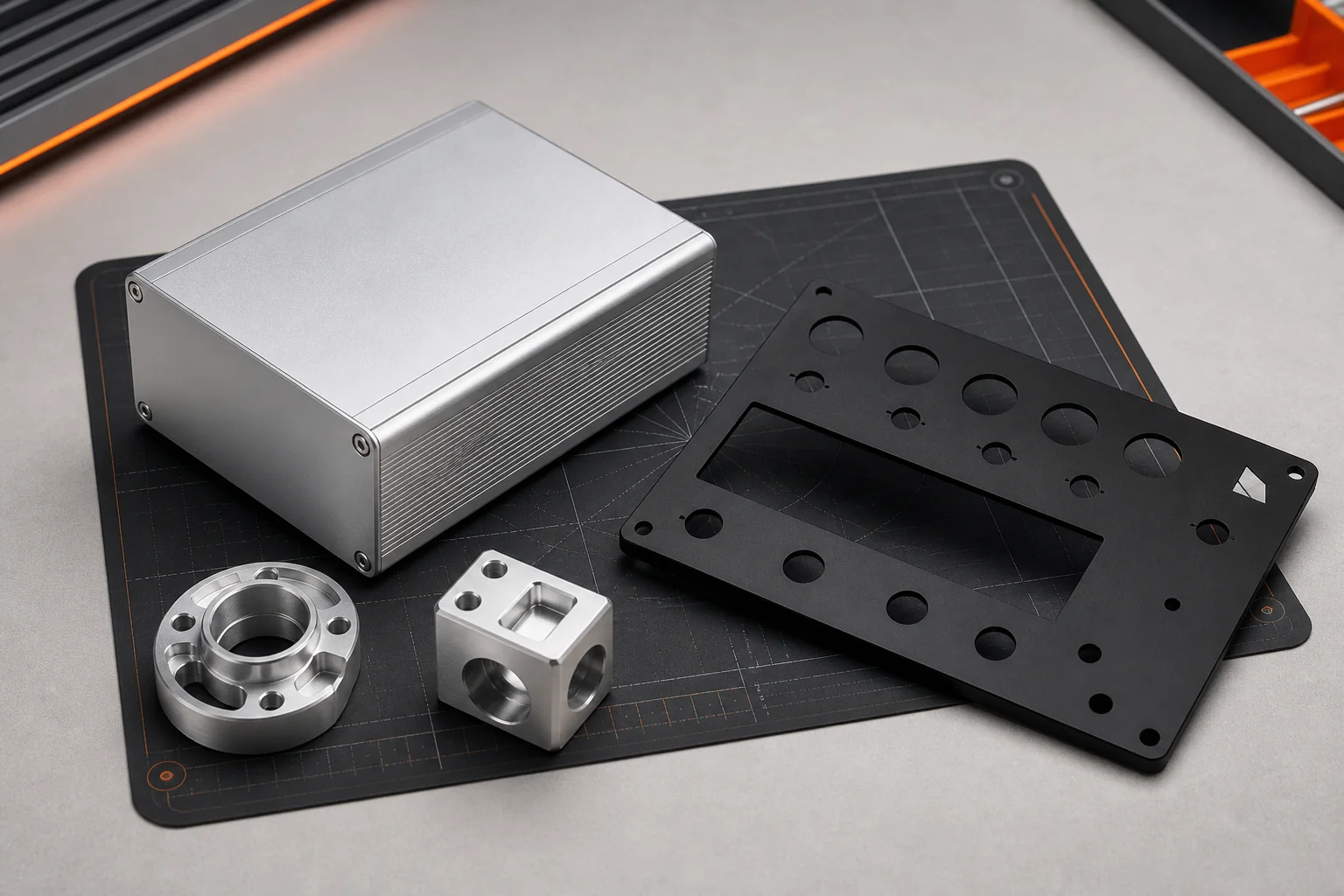

PM-F1 is intended for compatible metal-marking applications including stainless steel, aluminum and brass. Alloy composition, coating and finish can change the result, so the actual part should be tested.
Is a battery version available?
A battery configuration is available as an option for greater mobility and field use. It is not included in every PM-F1 configuration.
Can I send my material for testing?
Yes. Send material information, a product photo and your desired result. Testing the actual sample is the most reliable way to confirm a suitable setup.
